A 3 part multipoint repair lock that replaces 98% of existing fitted multipoint locks.

Keep one of each on your van.

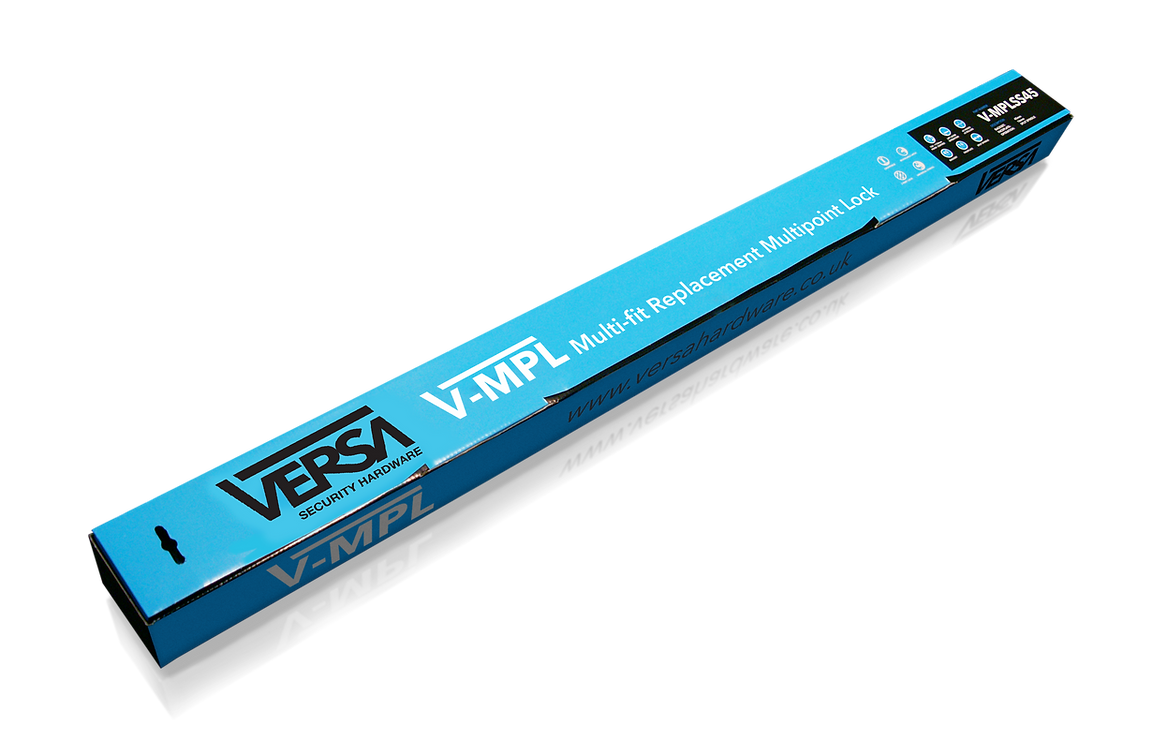

Versa V-MPL Multipoint Lock packaging image

A high security, versatile 3 point locking system designedto replace the largest range of multipoint locks on the market. The most flexible MPL on the market.



Supplied in 3 parts with serrated shoe connectors, 600mm of serrations and croppable extensions for ultimate flexibility.

Can be cropped to replace the majority of multipoint locks in the UK market.



Specific locks and keeps are designed to suit PVCu, wood or composite door profiles.



Non handed, reversible latch.

Backsets: 25mm. 28mm, 30mm, 35mm, 40mm, 45mm, 55mm
Faceplates: 16mm, 20mm

Spindle: Solid for Lift Lever, Split Spindle for Nightlatch

Centres: 92mm

MIN

Disance from spindle to top hook

Distance from spindle to bottom hook

347mm

377mm

MAX

847mm

877mm

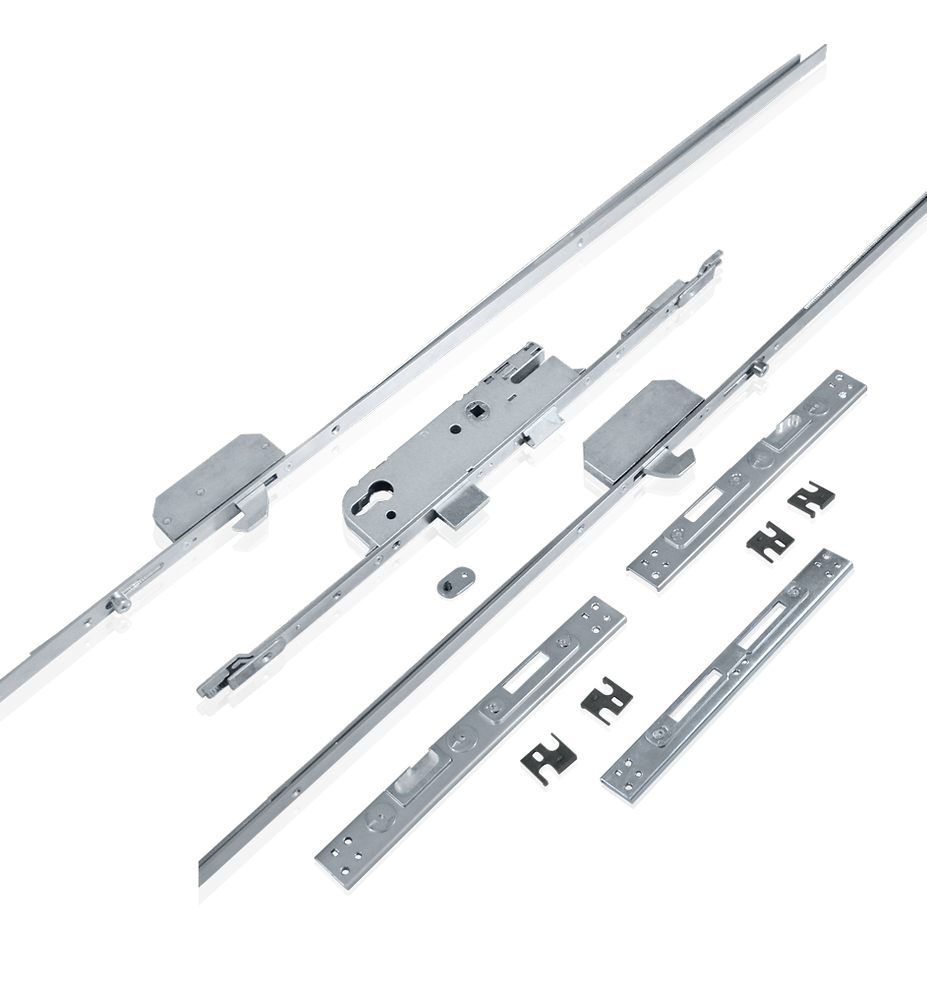

Versa V-MPL Multi-fit Replacement Multipoint Lock contents

Reversible latch.

Available in a range of backsets.

Small gearbox/centre case means no need to chisel out more of the door to accomodate,

Croppable to suit thousands of different multipoint locks.

Keeps which fit any profile.

3 part lock with serrated connectors.

Reversable
centre strike.

Non - handed

view the video

view blueprint

2 hook, 2 roller version

Versa V-MPL Hook & Roller Tech Drawing

view blueprint

2 hook version

Versa V-MPL Hook Tech Drawing
Versa V-SHOOT Multipoint Shootbolt

Multipoint Shootbolt Kit

A pair of reversible top or bottom shootbolts with keeps to suit the V-MPL range of VERSA Multipoint Locks. Please note that the 16mm version is pictured to the right. The 20mm version is supplied with a pair of flat strike plates.



• 20mm Shootbolt throw

• Supplied as a pair with keeps

• Available for either 16mm or 20mm faceplate widths

Versa V-MPL Universal Latch & Deadbolt Keep

Universal Latch
& Deadbolt Keep

Universal latch and deadbolt strike designed to work with all major multipoint lock brands regardless of the door profile. Special packers allow the keep to suit a range of different PVCu profiles.

Supplied with packers and grub screws.

Supplied as a non handed pair of keeps.

Versa V-MPL Universal Hook & Roller Keeps
Versa V-MPL Universal Hook Keeps

A pair of universal hook and roller keeps designed to work with the V-MPL regardless of the door profile. Special packers allow the keep to suit a range of different PVCu profiles.



Supplied with packers and grub screws.

Supplied as a non handed pair of keeps.

Universal Hook
& Roller Keeps

A pair of universal hook keeps designed to work with a huge range of MPLs regardless of the door profile. Special packers allow the keep to suit a range of different PVCu profiles.

Supplied with packers and grub screws.

Supplied as a non handed pair of keeps.

Universal Hook
Keeps
